Product Name:

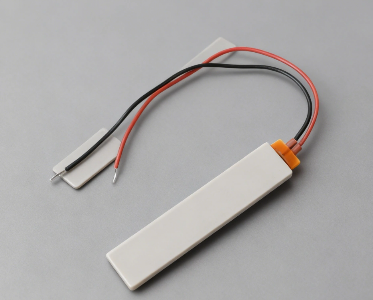

High-End Multi-Material PTC Constant Temperature Heating Element (Hair Clip Type)
Product Material:
Semiconductor-grade Barium Titanate ($BaTiO_3$) core, integrated with high-performance ceramic substrates: Alumina ($Al_2O_3$) for standard insulation, Aluminum Nitride (AlN) for ultra-fast thermal conductivity, or Zirconia ($ZrO_2$) for structural toughening. Encapsulated in aerospace-grade Aluminum or customized Ceramic-to-Metal housings.
Material Characteristics:
Advanced self-regulating constant temperature technology, Rapid thermal response supported by high-conductivity substrates (AlN/Alumina), Extreme mechanical durability (Zirconia reinforced), High dielectric strength ($15 \text{ kV/mm}$), Non-oxidation encapsulated circuits, Low aging decay rate, and zero-flame safety.
Application Fields:
Professional hair straighteners/clips, High-end curler irons, Precision laboratory sample warmers, Industrial glue guns, Portable medical infusion heaters, Constant temperature wax melters, Smart wearable heating modules.
Application Industries:
Biomedical (Sample thermal stabilization), Advanced Machinery (Miniature heating tools), New Energy (Battery pack pre-heating), Fluid Control (Constant temperature valves), Electronic Engineering (PCB pre-heating), Aerospace (Instrumentation anti-fogging), Petrochemical (Sensor thermal protection), Broad Semiconductor (Component drying).
Processing Difficulties:
Precise Curie Temperature ($T_c$) doping control (±3°C), Thermal expansion coefficient (CTE) matching between $BaTiO_3$ and AlN/Alumina substrates, Micrometer-level flatness grinding of ultra-hard ceramic surfaces, High-strength brazing of lead wires for high-pressure environments, Managing resistance stability over 10,000+ thermal cycles.
Processing Flow:
Nano-powder preparation ($BaTiO_3$ + Ceramic additives) → High-pressure Isostatic Pressing → Atmospheric controlled sintering → Diamond precision grinding (Flatness <0.02mm) → Multi-layer electrode screen printing → High-conductivity substrate integration (AlN/Alumina) → Insulation encapsulation → Aging & Curie Temp sorting → High-voltage safety verification → ESD packaging.
Delivery Period:
Standard configurations: 15-30 days, Customized multi-material/high-precision elements: 35-55 days.
This next-generation Hair Clip Type PTC Heating Element leverages our expertise in 8 advanced ceramic materials to deliver unparalleled thermal performance. By integrating a semiconductor-grade PTC core with Aluminum Nitride or Alumina substrates, we achieve a thermal response time 30% faster than industry standards. The PTC ceramic acts as an intelligent sensor, automatically modulating power to prevent overheating while ensuring a uniform heat field.
Key Features
Intelligent Self-Regulation: Built-in Curie temperature control eliminates the need for external thermostats, ensuring fail-safe operation.
Enhanced Thermal Conductivity: Available with AlN substrates for near-instantaneous heat-up and superior surface uniformity.
Multi-Material Durability: Integrated Alumina and Zirconia components offer industry-leading insulation and impact resistance.
High Energy Efficiency: Power output dynamically adjusts to thermal load, significantly reducing standby energy consumption.
Zero-Risk Safety: Encapsulated design prevents oxidation, open flames, and electrical leakage, even in high-humidity environments.

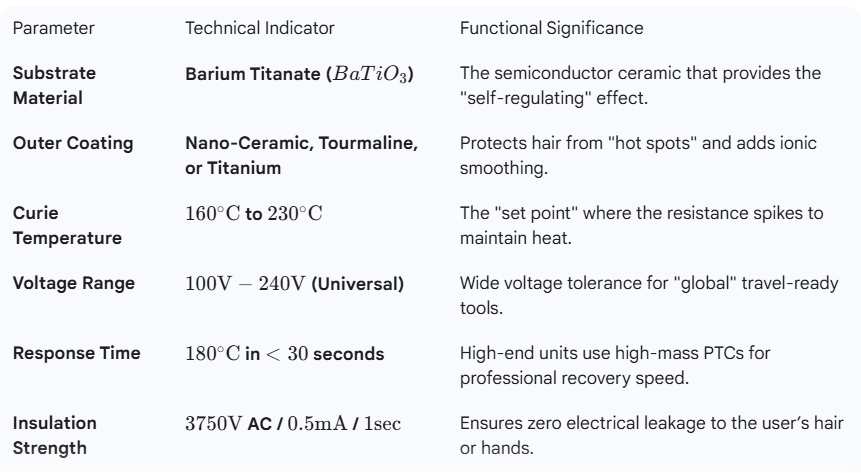

Core Technical Specifications
Our Market Advantages
