Product Name:

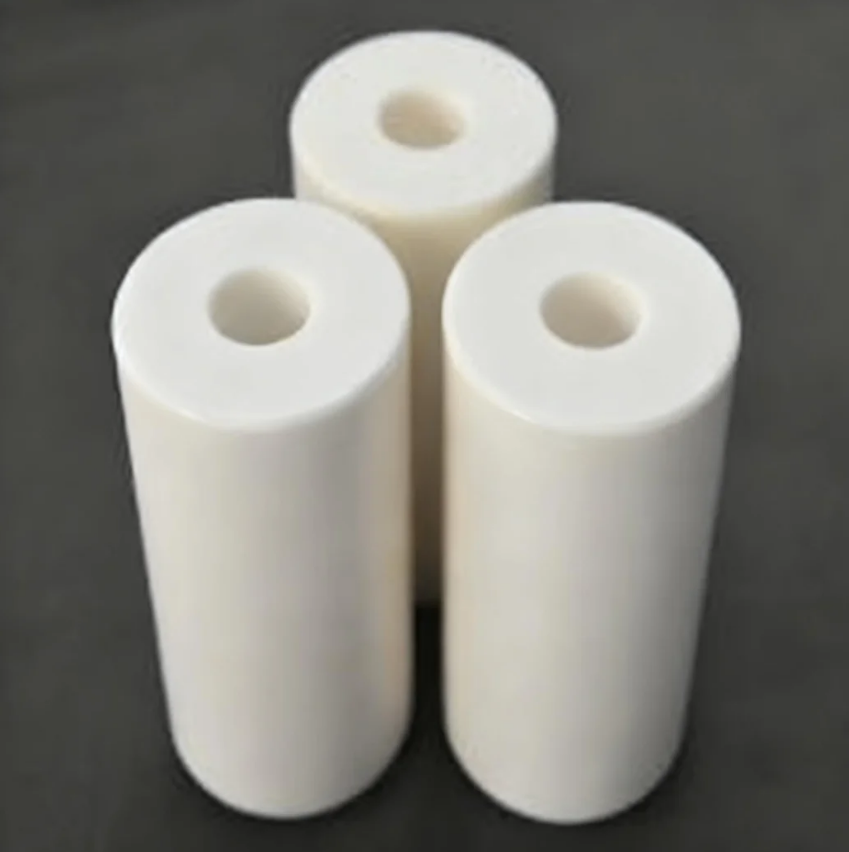

99% Alumina Ceramic Tube
Product Material:
High-Purity Alumina Ceramic (Al₂O₃ ≥99%). For applications requiring higher toughness or thermal shock resistance, Zirconia Toughened Alumina (ZTA) composite material can be utilized.

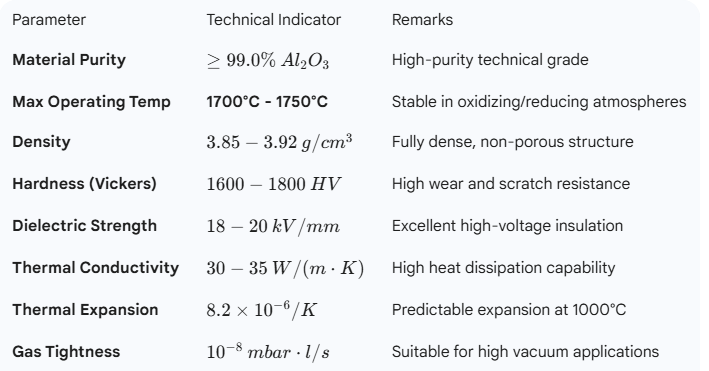

Material Characteristics:
Very high purity and excellent chemical stability, Outstanding high-temperature stability (long-term service temperature >1600°C), Superior electrical insulation properties (high volume resistivity), High hardness (Mohs hardness 9) and good wear resistance, Low coefficient of thermal expansion (~7.8×10⁻⁶/°C), Low thermal conductivity, Excellent corrosion resistance (resistant to various acids, alkalis, and molten metals), Surface can achieve high smoothness to meet diverse application requirements.
Application Fields:
High-temperature furnace tubes, insulating sleeves, thermocouple protection tubes in semiconductor manufacturing equipment; Liner tubes and carrier tubes for high-temperature industrial furnaces (e.g., muffle furnaces, atmosphere furnaces); Corrosion-resistant piping, reactor liner tubes in chemical and petroleum industries; Chromatography column tubes in analytical instruments (e.g., gas chromatography); Insulating, inert fluid channels, or high-temperature sterilization containers in medical and biotechnology fields; Insulating sleeves for lasers and lighting equipment.
Application Industries:
Semiconductor Manufacturing, Aerospace (High-temperature test equipment), Biomedical (Medical device components), Petrochemical, Advanced Mechanical Equipment (High-temperature furnaces, heat treatment equipment), New Energy (Solid-state battery, fuel cell components), Electronic Engineering.
Processing Difficulties:
Controlling sintering deformation and bending during the manufacture of long, thin-walled tubes with high aspect ratios; Ensuring extremely high concentricity and straightness of inner and outer diameters; Achieving high-precision internal bore machining and excellent internal surface finish; Controlling wall thickness uniformity for long tubes; Achieving precise end face machining and metallization for tube ends requiring sealing or joining; Meeting long-term structural integrity requirements under extreme conditions (e.g., high temperature & pressure, strong corrosion).
Processing Flow:
Batching and granulation of high-purity alumina powder → Isostatic pressing or extrusion molding to form tubular green bodies → Precision machining of green bodies (length cutting, end facing) → High-temperature sintering → Centerless grinding/honing of OD and ID to achieve basic dimensions → Precision CNC OD/ID grinding to target tolerances → Precision end face grinding → Internal bore polishing if required → Inspection of dimensions, roundness, straightness, and wall thickness variation → Surface cleaning and packaging
Delivery Period:
Standard dimension straight tubes: 25-45 days
Custom tubes with high precision / thin walls / long lengths / special processing (e.g., metallization, special ends): 50-90 days
The 99% Alumina Ceramic Tube is a typical tubular product made from high-purity alumina ceramic, representing a reliable piping solution for environments with extreme temperatures, strong corrosion, and high insulation requirements. With its alumina content exceeding 99%, this product maximizes the inherent properties of alumina material: a high melting point,卓越 chemical inertness, and superior electrical insulation. Whether serving as a heat treatment carrier for wafers in semiconductor processes, a conveyance channel for corrosive fluids in chemical processing, or a core heat-resistant component in high-temperature furnaces, the 99% Alumina Ceramic Tube delivers contamination-free, long-lasting, and stable performance. It is a foundational material in modern industry for handling demanding media and environments.
Key Features:
Exceptional High-Temperature Performance and Thermal Stability – The material can maintain structural strength and shape stability over long periods at temperatures above 1600°C, without softening or deforming. Its low coefficient of thermal expansion ensures minimal dimensional change during severe thermal cycling, which is crucial for high-temperature applications requiring precise alignment or serving as reaction chambers.
Superior Chemical Inertness and Purity Assurance – Its high purity and dense microstructure provide outstanding resistance to most acids, alkalis, salts, and organic solvents, with几乎 no reaction with the medium. This ensures the purity of conveyed fluids and avoids contamination caused by tube wall corrosion, making it highly suitable for semiconductor, pharmaceutical, and high-purity chemical industries.
Precision Engineering for High-Temperature Industrial Use
The 99% alumina ceramic tube is engineered for industries demanding robust piping and protective components capable of withstanding extreme thermal and corrosive environments. Targeted at process engineers and procurement specialists in semiconductor fabrication, chemical processing, and furnace manufacturing, it provides a contamination-free solution that maintains process integrity. Our custom alumina ceramic options ensure exact dimensional compatibility and strict adherence to operational requirements of advanced industrial systems.
Advanced Material Properties Delivering Reliable Performance
This alumina ceramic product features a high alumina content of ≥99%, offering exceptional thermal stability above 1600°C without deformation. Its low thermal expansion coefficient (~7.8×10⁻⁶/°C) mitigates stress from temperature cycling, critical in precision environments. The combination of Mohs hardness 9 and excellent wear resistance ensures durability. Additionally, the tube exhibits superior electrical insulating properties, high volume resistivity, and chemical inertness, supporting its use in environments requiring electrical isolation and corrosion resistance. This level of performance is supported by our comprehensive alumina ceramic machining capabilities.
Integrated Solutions Across Demanding Industries
Utilized broadly across sectors such as semiconductor processing, chemical manufacturing, and high-temperature furnace systems, this alumina ceramic tube serves as heat treatment carriers, corrosion-resistant conduits, and electrical insulators. Its properties enable contamination-free processing of aggressive media and temperature-sensitive materials. Integration with analytical instrumentation like chromatography columns and capability as insulating sleeves for high-voltage equipment demonstrate its versatility. These qualities position the product as a critical component within comprehensive industrial ceramic solutions tailored for high-reliability applications.
Product Advantages
Structural and Design Expertise in Advanced Ceramics
Our 99% alumina ceramic tube benefits from a tightly controlled manufacturing process encompassing raw material preparation, sintering, and precision forming. The tube design ensures minimal dimensional variation with a smooth surface finish, optimized for integration into complex assemblies. The availability of custom alumina ceramic fabrication enables adaptation to specific engineering tolerances and application demands. This systemic approach enhances compatibility with existing mechanical systems and facilitates modular replacement or upgrade within operational frameworks, supporting long-term asset reliability.
Performance Focused on Durability and Operational Efficiency
With outstanding hardness and wear resistance, the tube maintains structural integrity under sustained mechanical and thermal stress, reducing maintenance frequency. High-purity alumina ceramic parts exhibit superior electrical insulation properties, ensuring safe functionality in high-voltage and high-temperature environments. The product's chemical stability extends service life in harsh chemical processing, improving overall process uptime and reducing contamination risks. These operational advantages translate into measurable ROI improvements for engineers and asset managers deploying industrial ceramic solutions in mission-critical applications.
Use Scenarios
Heat Treatment Carrier in Semiconductor Fabrication
In semiconductor manufacturing cleanrooms, the 99% alumina ceramic tube is employed as a heat treatment carrier for silicon wafers. Its chemical inertness prevents contamination during thermal processing, while its high-temperature durability ensures stable heat transfer above 1600°C. This tubular component supports precise thermal cycling without dimensional alteration, essential for wafer quality and yield. The tube's compatibility with semiconductor-grade gases and integration into furnace conveyor systems exemplify its role in maintaining controlled process conditions within high-purity environments supported by alumina ceramic machining precision.
Corrosion-Resistant Conduit in Chemical Processing
Within chemical plants, this alumina ceramic tube functions as a conduit for aggressive fluids, ensuring leak-proof and corrosion-resistant transfer paths. Its high-purity composition prevents chemical reactions that could compromise the medium or tube integrity. The tube’s electrical insulation properties enable its use in electrically sensitive process sections. Integration into piping systems is enhanced by customizable dimensions and metallized end treatments for secure connections. This application underscores its reliability as a critical component in delivering stable industrial operations, leveraging expertise as a leading alumina ceramic manufacturer.
FAQ
What are the main benefits of using a 99% alumina ceramic tube?
The 99% alumina ceramic tube offers exceptional high-temperature stability beyond 1600°C, strong chemical inertness, and superior electrical insulation. These features ensure durable, contamination-free performance for industrial applications like semiconductor heat treatment and chemical fluid conveyance.
Can I order custom alumina ceramic tubes with special dimensions or treatments?
Yes, CERAMPRO provides custom alumina ceramic tubes tailored to your specifications, including high precision, thin walls, long lengths, and additional processing such as metallization or end-face grinding. Custom orders typically require 50-90 days for delivery.
How does CERAMPRO ensure the quality of its alumina ceramic parts?
CERAMPRO applies strict quality control throughout the production process, with IQC, IPQC, and OQC departments, supported by high-precision testing equipment. This ensures each alumina ceramic part meets industry standards for purity, mechanical strength, and surface finish.
What installation considerations apply to alumina ceramic tubes in high-temperature environments?
When installing alumina ceramic tubes, it’s important to consider thermal expansion and mechanical support due to the material's low coefficient of thermal expansion (~7.8×10⁻⁶/°C). Proper fixtures help maintain dimensional stability during thermal cycling in high-temperature applications.
