Place of Origin: Guangdong, China
Material Introduction: Made from high alumina ceramic with strong wear resistance and stable performance in abrasive working conditions. For more material options, please visit our Alumina Ceramics page.
Key Features: Compact tile design, easy layout on curved or irregular surfaces, high hardness, good abrasion resistance, corrosion resistance, and flexible customization by size, thickness, and shape.
Applications: Suitable for local wear protection in chutes, hoppers, elbows, pipes, transfer points, conveyors, cyclones, and bulk material handling equipment.
Lead Time: Lead time depends on tile size, quantity, thickness, layout design, and drawing requirements. For custom projects, please contact us with drawings or application details.

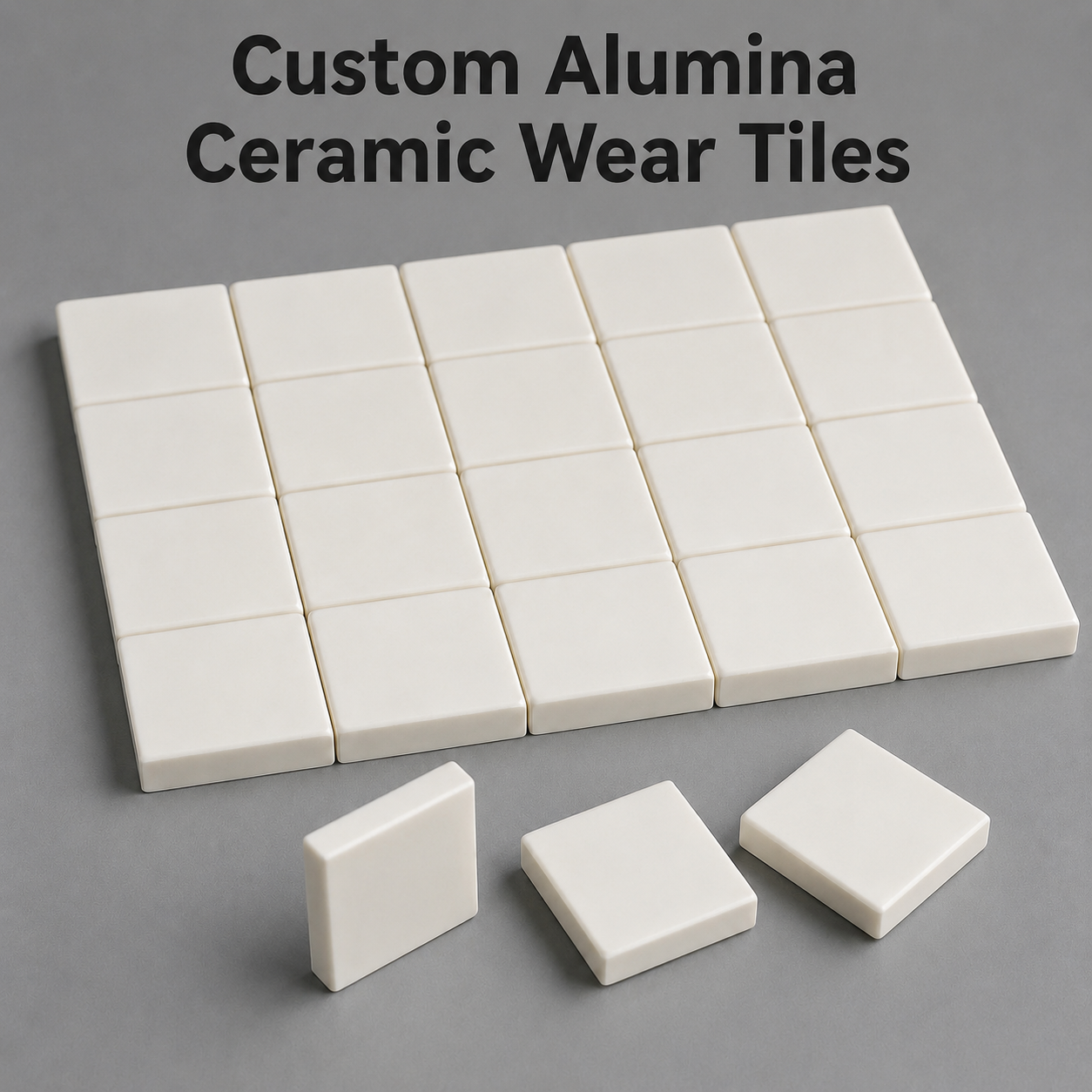

Custom Alumina Ceramic Wear Tiles are designed for equipment areas where abrasion happens in smaller, curved, or hard-to-cover sections. Compared with large ceramic wear plates, these tiles are easier to arrange around elbows, corners, transfer points, and irregular lining surfaces.
Made from high alumina ceramic, the tiles offer good hardness, wear resistance, and stable performance in abrasive working environments. They can be customized by size, thickness, shape, hole position, edge design, and layout according to drawings, samples, or actual working conditions.
For more alumina ceramic material options, please visit our Alumina Ceramics page.
These ceramic wear tiles are commonly made from 92% or 95% alumina ceramic. The material grade can be selected based on the wear level, impact condition, installation method, and budget.
Alumina ceramic wear tiles are suitable for local wear protection in equipment that handles powder, minerals, coal, cement, sand, grain, or other abrasive materials.
The main value of alumina ceramic wear tiles is flexibility. When the equipment surface is not flat, or when the wear area is limited to a corner, bend, or transfer point, small ceramic tiles are often easier to install than large ceramic plates.
CERAMPRO can produce custom ceramic wear tiles based on drawings, samples, or working conditions. If the customer is not sure which size, thickness, or layout is suitable, our team can help review the application and suggest a practical solution.
For custom wear protection projects, please contact us with your drawing, tile size, quantity, and working condition.
| Item | Typical Specification |
|---|---|
| Material | 92% / 95% Alumina Ceramic |
| Color | White / Ivory |
| Shape | Square, rectangular, hexagonal, trapezoid, curved, or custom shape |
| Alumina Content | 92%–95% |
| Density | Approx. 3.60–3.75 g/cm³ |
| Hardness | HRA 85–90 |
| Surface | Flat, curved, chamfered, or custom machined |
| Installation Style | Bonding, rubber backing, stud welding, or custom layout |
| Custom Options | Size, thickness, hole, groove, edge shape, and tile arrangement |
Note: The above data is for reference only. Final specifications depend on material grade, tile size, and project requirements.
| Material | Main Features | Suitable Use |
|---|---|---|
| Alumina Ceramic Wear Tiles | Flexible layout, good wear resistance, cost-effective | Curved surfaces, elbows, corners, and local wear areas |
| Alumina Ceramic Wear Plates | Larger coverage area, suitable for flat surfaces | Large flat lining areas |
| Rubber Liners | Better impact absorption, lower hardness | Medium wear with impact |
| Steel Liners | Easy to fabricate and install | General protection with lower wear resistance |
| ZTA Ceramic | Better toughness and impact resistance | Severe wear and higher impact areas |
They are used to protect equipment surfaces from abrasion, especially in chutes, hoppers, elbows, transfer points, cyclones, and material handling systems.
Wear tiles are smaller and more flexible for curved, narrow, or irregular surfaces. Wear plates are usually larger and more suitable for flat, wide lining areas.
Yes. Size, thickness, shape, holes, grooves, chamfers, and tile layout can be customized according to drawings or equipment requirements.
92% and 95% alumina ceramic are commonly used for industrial wear protection. The final choice depends on the wear condition, impact level, and cost target.
Yes. Small ceramic tiles are suitable for curved surfaces, elbows, corners, and irregular lining areas.
Yes. They are commonly used in mining, cement plants, power plants, coal handling systems, and bulk material handling equipment.
Common installation methods include adhesive bonding, rubber backing, stud welding, or custom layout depending on the equipment structure.
Yes. We can manufacture custom alumina ceramic wear tiles based on drawings, samples, or application details.
Yes. Square, rectangular, hexagonal, trapezoid, curved, and other custom shapes are available.
Please provide the tile size, thickness, quantity, material grade, drawing if available, and working condition such as material type, impact level, and wear area. You can also visit our FAQ page for more ceramic customization questions.
