Product Name:
Fine-Structured Zirconia Ceramic Plunger
Product Material:
Yttria-Stabilized Tetragonal Zirconia Ceramic (Y-TZP). For applications involving extreme wear or high-frequency impact, Silicon Carbide (SiC) or Silicon Nitride (Si₃N₄) can be offered as alternative or localized reinforcement solutions.
Material Characteristics:
Exceptional fracture toughness (highest among ceramics, K₁c: 8-12 MPa·m¹ᐟ²) and impact resistance, Ultra-high hardness (HV >1200) and extremely low wear rate, Excellent chemical corrosion resistance (resistant to strong acids, alkalis, organic solvents, and lithium-ion battery electrolytes), High mechanical strength and flexural strength (>1000 MPa), Low friction coefficient and good potential for self-lubrication, Moderate coefficient of thermal expansion (~10×10⁻⁶/K) compatible with various metals, Material is pure and non-magnetic with zero risk of metal ion leaching.
Application Fields:
Core drive plungers for high-precision, high-pressure metering pumps; Corrosion-resistant, ultra-clean fluid drive components in semiconductor wet process equipment (e.g., CMP, cleaning); Sterile, corrosion-resistant precision pistons in biopharmaceutical fields (e.g., chromatography systems, filling lines); Reciprocating pump plungers for conveying corrosive, high-purity, or fine-particle-laden media in chemical processes; High-pressure, corrosion-resistant piston assemblies in fuel cell test stations or electrolyzers.
Application Industries:
Fluid Control (Precision chemical, pharmaceutical equipment), Semiconductor Manufacturing, Biomedical (Pharmaceuticals, biotechnology), New Energy (Fuel cells, lithium battery manufacturing), Petrochemical, Advanced Mechanical Equipment.
Processing Difficulties:
Manufacturing plungers with fine structures such as ultra-high length-to-diameter ratios, multiple steps, irregular profiles, or internal cooling/flow channels; Ensuring extremely high straightness (e.g., <1 µm/100mm) and cylindricity over the entire length; Achieving nano-level (Ra < 0.02 µm) surface finish and tight dimensional tolerances (often in the µm range) on critical mating sections (e.g., sealing zones); Controlling uniform shrinkage of complex structures during sintering to avoid deformation and cracking; For hollow structures like those with internal cooling channels, ensuring the smoothness and dimensional accuracy of the inner walls.
Processing Flow:
Ultra-fine dispersion and stable slurry preparation of high-purity nano Y-TZP powder → Direct molding of complex-structure green bodies via precision Ceramic Injection Molding (CIM) → Catalytic debinding and gradient temperature presintering → High-temperature atmosphere sintering (with optional HIP post-treatment) to full density → Precision CNC cylindrical grinding to establish datum and preliminary shape → Multi-axis ultra-precision CNC grinding of complex contours, steps, and critical sealing sections → Ultrasonic or laser machining of micro-channels and internal cavities → Multi-step precision honing and diamond paste polishing to achieve target surface quality → Full-dimensional and geometric tolerance inspection via Coordinate Measuring Machine (CMM) and profilometer → Pairing selection and performance simulation testing → Cleanroom cleaning and vacuum packaging
Delivery Period:
Standard structure high-precision plungers: 55-85 days
Custom plungers with complex internal structures, ultra-high length-to-diameter ratios, or special performance requirements (e.g., resistance to specific media): 100-160 days
The Fine-Structured Zirconia Ceramic Plunger is the core moving component that enables long-term, stable, and precise operation in high-end fluid drive equipment, representing the ultimate material solution under extreme mechanical, chemical, and purity requirements. It fundamentally overcomes the application limitations of traditional metal plungers (prone to wear, corrosion, and media contamination) and conventional engineering ceramic plungers (susceptible to brittle fracture). By employing Y-TZP zirconia ceramic with its transformation toughening effect and incorporating precise structural design (e.g., stress-optimized profiles, integrated cooling channels), this plunger maintains micron-level motion accuracy, near-zero wear rate, and absolute media purity while withstanding high pressure, high-frequency reciprocating motion, and harsh chemical environments. It is a revolutionary component that enhances the reliability and efficiency of high-value processes.
Key Features:
Unparalleled Mechanical Reliability: High Toughness, High Hardness, Fatigue Resistant – Zirconia's transformation toughening mechanism makes it unique among ceramics, possessing fracture toughness approaching that of some metals. This allows it to withstand installation tightening stress, operational lateral impact forces, and millions of reciprocating cycles without fracture, fundamentally eliminating the risk of brittle failure in precision ceramic components. Its ultra-high hardness ensures minimal wear against the mating cylinder, extending service life by an order of magnitude compared to metal plungers.
Ultimate Chemical Compatibility and Ultra-Pure Assurance – The material exhibits exceptional resistance to a wide range of chemicals, including strong acids, alkalis, organic solvents, and specialty electrolytes. Its high-density, impermeable microstructure ensures no contaminant leaching and no reaction with the media. This makes it the ideal choice for industries with "zero tolerance" for contamination, such as semiconductors, biopharmaceuticals, and high-purity chemical transfer, perfectly safeguarding the quality and consistency of the final product.
Perfect Integration of Precise Structure and Exceptional Performance – Thanks to advanced molding and ultra-precision machining technologies, we can achieve complex fine structures (e.g., built-in micro flow channels, special relief grooves) that are difficult to achieve through traditional machining. These structures optimize the plunger's stress distribution, heat dissipation, or fluid dynamic characteristics. Combined with nano-level surface smoothness, this ensures minimal frictional resistance, the smallest internal leakage, and the highest volumetric efficiency, thereby endowing the equipment with exceptional metering accuracy, response speed, and energy efficiency.

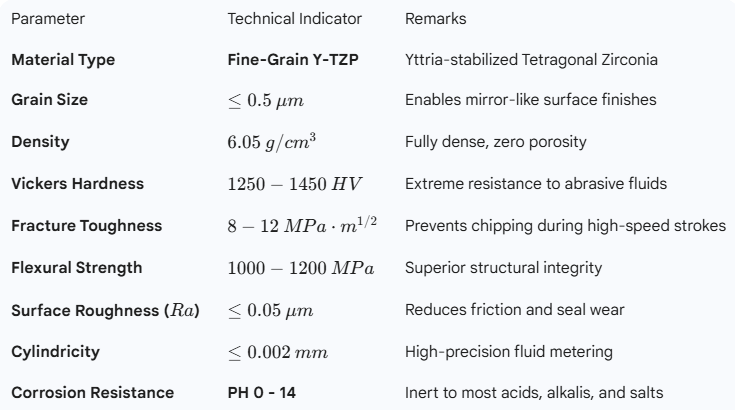

Core Technical Specifications
Our Market Advantages
Functional Positioning for Precision Fluid Handling Components
This fine-structured zirconia ceramic plunger serves as a critical moving element within high-end fluid drive equipment, tailored for industries requiring exceptional metering accuracy and reliability. Designed specifically for engineers and procurement managers involved in precision pump assemblies, it addresses stringent mechanical and chemical resistance demands. Our industrial ceramic solution enables sustained operation under high-frequency reciprocation, positioning it as an essential component for users seeking enhanced system stability and contamination control in aggressive or ultra-pure environments. As part of the portfolio from leading zirconia ceramic suppliers, it supports customization to meet diverse application requisites.
Technical Features Ensuring Superior Durability and Precision
Manufactured from Yttria-Stabilized Tetragonal Zirconia Ceramic (Y-TZP), this plunger incorporates transformation toughening to improve fracture resistance and attain an ultra-high hardness exceeding HV 1200. Precision processing including Ceramic Injection Molding (CIM), catalytic debinding, and optional HIP post-treatment enable micron-level dimensional tolerances and nano-scale surface finishes (Ra ~0.02 μm). Built-in micro flow channels enhance internal fluid dynamics and thermal management, while the material’s inherent non-magnetic and chemically inert characteristics prevent metal ion leaching, preserving media purity. Variants reinforced with Silicon Carbide or Silicon Nitride are available to tailor mechanical properties further. This industrial ceramic material’s specifications support rigorous operational requirements with flexural strength above 1000 MPa.
Industry Applications Highlighting Cleanroom and Chemical Compatibility
The fine-structured zirconia ceramic plunger performs reliably in critical industrial environments including high-purity fluid-driving assemblies, chemical processing equipment, and precision metering pumps requiring stringent contamination control and chemical inertness. It is ideal for cleanroom applications where zero particulate generation is mandatory, as well as for equipment subjected to aggressive chemical media. Integration with internal cooling channels and compatibility with custom geometries make it suitable for complex system designs needing tight sealing and endurance under cyclic loads. As a trusted component supplied by top-tier zirconia ceramic manufacturers, it facilitates process stability and supports validation workflows in production lines demanding consistent, accurate fluid metering.
Product Advantages
Structural and Design Advantages of Zirconia Ceramic Components
The plunger’s design leverages advanced industrial ceramic materials optimized through state-of-the-art manufacturing workflows employing Ceramic Injection Molding and precision multi-axis grinding. The integration of built-in microchannels and relief grooves addresses uneven stress distribution and facilitates effective heat dissipation during continuous reciprocating motion. Custom zirconia ceramic variants can be adapted for reinforcement with Silicon Carbide or Silicon Nitride, enhancing localized wear resistance without compromising dimensional stability. This modular design approach ensures compatibility with a variety of fluid drive system architectures and simplifies integration into existing industrial ceramic solutions, while maintaining tight tolerances critical for high-performance metering applications.
Performance Benefits Centered on Reliability and Media Purity
This zirconia ceramic plunger exhibits ultra-low wear that significantly extends component lifespan and reduces maintenance cycles in demanding applications. Its non-magnetic, chemically inert nature ensures zero contamination risk—critical for maintaining the purity of process fluids. Precision surface finishing minimizes friction and contributes to consistent volumetric metering over long operational periods. The optional HIP post-treatment boosts mechanical properties without compromising dimensional accuracy, supporting stable performance under extreme mechanical and thermal conditions. By partnering with reputable zirconia ceramic suppliers, customers benefit from a product that enhances system efficiency and process reproducibility, generating measurable ROI through improved reliability and reduced downtime.
Use Scenarios
High-Purity Fluid Handling in Chemical Processing Environments
Within chemical processing plants, the fine-structured zirconia ceramic plunger operates as the primary metering element in fluid pumps that handle aggressive and corrosive media. The chemical inertness and absence of metal ion leaching align with strict purity requirements, while the ceramic’s fracture toughness maintains integrity under repetitive stress cycles. The product’s microchannel design aids in internal cooling, preventing thermal degradation during continuous operation. By integrating these plungers into fluid delivery systems, plant engineers achieve precise dosing and maintain operational compliance with contamination standards, supporting optimized workflows for high-purity chemical handling and reducing the risk of costly process disruptions.
Role in High-Precision Metering Pumps for Cleanroom Applications
In environments demanding stringent contamination control, such as pharmaceutical or semiconductor manufacturing, this industrial ceramic component ensures reliable volumetric precision within fluid drive assemblies. Its ultra-smooth, nano-scale surface finish and non-magnetic properties prevent particulate generation and magnetic interference. The plunger’s dimensional stability under repeated reciprocation maintains tight sealing zones necessary for leak-free operation. Collaborating with zirconia ceramic manufacturers allows tailored designs including custom internal cooling channels to address specific system requirements. Integration into cleanroom pumping systems enhances compliance with ISO standards, improves product consistency, and shortens validation cycles in precision dosing processes.
