Product Name:

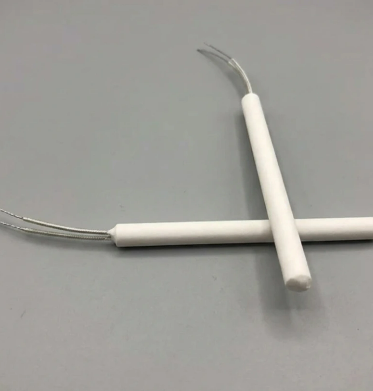

Original Internal Heating Ceramic Soldering Core
Product Material:
High-purity Alumina ($Al_2O_3$) ceramic matrix, Integrated Tungsten (W) co-fired heating circuit, High-temperature resistant Nickel-chromium leads or Nickel terminals
Material Characteristics:
Superior thermal conductivity for internal heat transfer, Ultra-fast ramp-up speed, Exceptional insulation resistance ($>100 \text{ M}\Omega$), Resistant to high-temperature oxidation and chemical flux erosion, High mechanical strength, Precision-controlled resistance (TCR stability)
Application Fields:
Original equipment manufacturer (OEM) soldering irons, High-end soldering stations, Lead-free soldering systems, Micro-soldering tools, Automated robotic soldering arms, Precision rework equipment
Application Industries:
Biomedical (Medical electronics assembly), Advanced Machinery (Precision instrumentation), New Energy (BMS and EV electronics), Fluid Control (Sensors soldering), Electronic Engineering (SMT/PCB assembly), Aerospace (Avionics repair), Petrochemical (Field tool maintenance), Broad Semiconductor (Package testing tools)
Processing Difficulties:
Achieving perfect concentricity for internal tip fitment, Controlling the micro-shrinkage during $1600^\circ\text{C}$ co-firing to maintain resistance tolerance, Ensuring high-reliability brazing between internal tungsten and external leads, Preventing micro-cracking during rapid $25^\circ\text{C}$ to $400^\circ\text{C}$ thermal cycling
Processing Flow:
Ceramic slurry preparation → High-precision tape casting → Internal circuit screen printing → Multi-layer micro-lamination → High-temperature vacuum sintering → Precision diamond grinding (Outer diameter) → Terminal brazing → Power-on aging and stability testing → Insulation leakage detection → Final inspection and original packaging
Delivery Period:
Standard original series: 15-25 days, Customized high-precision series: 30-50 days
This Original Internal Heating Ceramic Soldering Core is the premium choice for professional soldering tools, designed to provide concentrated heat where it matters most—the soldering tip. Unlike external heating elements, the internal design places the heat source directly inside the tip, ensuring nearly zero thermal loss and instantaneous thermal recovery during heavy-duty use. Encapsulated in a dense Alumina body, the heating circuit is protected from environmental degradation, ensuring a service life that significantly outlasts traditional nichrome wire components. It is the core technology behind efficient, lead-free, and high-precision electronic assembly.
Key Features:
Instant Thermal Recovery: Direct internal contact ensures the tip temperature stays constant even during continuous high-load soldering.
Leakage-Free Performance: Fully encapsulated co-fired circuit prevents electrical leakage, ensuring safety for sensitive electronic components (ESD safe).
Extreme Durability: Optimized for 24/7 industrial use with high resistance to thermal fatigue and structural degradation.
Energy Efficient: High energy conversion rate with minimal dissipation, reducing heat transfer to the handle for operator comfort.
Original Fitment: Precision-ground outer diameters ensure a perfect fit with standard professional soldering tips, optimizing heat transfer efficiency.

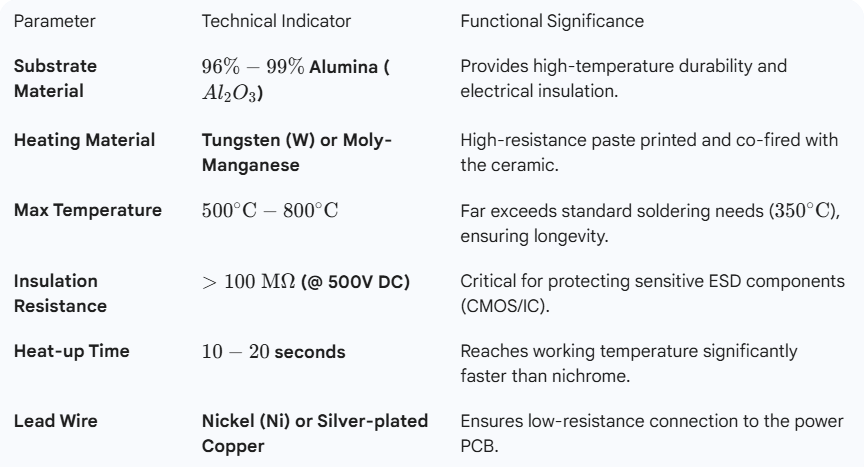

Core Technical Specifications
Our Market Advantages
