Product Name:
Zirconia Ceramic Parts with Internal/External Thread Machining
Product Material:
Yttria-Stabilized Tetragonal Zirconia Ceramic (Y-TZP). For applications requiring extreme wear resistance or specific electrical properties, Silicon Carbide (SiC) can be selected, or Silicon Nitride (Si₃N₄) offered as an alternative.
Material Characteristics:
Exceptional fracture toughness (highest among ceramics, K₁c: 8-12 MPa·m¹ᐟ²) and high impact resistance, Ultra-high hardness (HV >1200) and very low thread wear rate, Excellent chemical corrosion resistance (resistant to strong acids, alkalis, organic solvents, and salt spray), High mechanical strength and good creep resistance, Low friction coefficient, Capable of achieving high-precision and high-finish thread surfaces (Ra < 0.4 µm), Material is pure, non-magnetic with no metal ion leaching, Excellent biocompatibility.
Application Fields:
High-cleanliness, corrosion-resistant threaded connectors in semiconductor and vacuum equipment (e.g., chamber viewport flanges, feedthrough interfaces); Sterile, biocompatible threaded components in biomedical devices and implantable instruments (e.g., sensor housings, adjustable implant connectors); Corrosion and wear-resistant pipe fittings, valve cores, and threaded sections of measurement probes in chemical and petroleum equipment; Precision, inert fluid connection interfaces in high-end analytical instruments (e.g., chromatography, mass spectrometry); High-stability lens retaining rings and adjustment mechanism threaded parts in optical and laser equipment.
Application Industries:
Semiconductor Manufacturing, Biomedical (High-end medical devices, implants), Fluid Control (Precision chemical processing, instrumentation), Petrochemical, New Energy (Fuel cells, electrolytic hydrogen production), Advanced Mechanical Equipment, Electronic Engineering.
Processing Difficulties:
Forming high-precision, high-integrity internal and external threads on high-hardness, high-brittness ceramic materials; Preventing micro-cracks, chipping, and stress concentration generated during thread machining (especially tapping or grinding); Ensuring thread parameters (flank angle, pitch diameter, pitch) meet strict tolerance requirements (often Class 6H/6g or higher); Machining deep-hole internal threads or slender external threads while ensuring their straightness and coaxiality; Ensuring surface finish of thread mating surfaces to meet sealing or low-friction requirements.
Processing Flow:
High-purity Y-TZP powder processing and forming (dry pressing/isostatic pressing/injection molding) → High-temperature sintering for densification → Precision CNC machining of part profile and datums → Thread Forming (selected based on accuracy and size): Diamond wheel thread grinding / Ultrasonic-assisted thread machining / High-precision ceramic-specific tap threading (on pre-sintered blanks) → Precision polishing and deburring of threaded sections → Full parameter inspection (pitch diameter, pitch, flank angle) using Coordinate Measuring Machine (CMM) and thread measuring machines → Surface cleaning and cleanroom packaging
Delivery Period:
Standard metric/imperial threaded parts: 40-65 days
High-precision, non-standard threads (e.g., trapezoidal threads, special taper threads) or miniature threads (below M3): 70-120 days
Zirconia Ceramic Parts with Internal/External Thread Machining are cutting-edge products that combine the exceptional mechanical properties and chemical inertness of zirconia with the precise functionality of threaded connections. In applications requiring connections and seals that simultaneously face harsh conditions of corrosion, wear, high purity, and electrical insulation, traditional metal threaded parts struggle with corrosion, galling, contamination, and insulation failure. This product provides the perfect solution through advanced ceramic thread machining technology. It not only inherits the fundamental traits of zirconia ceramic—high toughness, high hardness, and comprehensive chemical stability—but also, through sub-micron level thread machining accuracy, enables reliable, durable, and pure connections between ceramic parts or between ceramic and metal parts. It has become a key element for the modular design and long-term reliable operation of high-end equipment.
Key Features:
Robust and Durable Connection Solution: Anti-galling, Wear Resistant, Long Service Life – The high hardness and low friction coefficient of zirconia give the thread pair excellent anti-wear and anti-galling properties during repeated tightening and loosening, making it particularly suitable for equipment requiring frequent maintenance or adjustment. Its exceptional toughness effectively prevents brittle cracking that might be caused by installation stress, ensuring the long-term reliability and reusability of the threaded connection.
Superior Chemical and Environmental Tolerance – The entire part is made of highly chemically inert zirconia, with the threaded section also possessing perfect corrosion resistance. Whether exposed to corrosive atmospheres, acid/alkali media, or high-salt environments, it maintains thread strength and dimensional stability, without rust or chemical degradation, completely solving the failure problem of metal threads in harsh environments.
High Precision and Functional Integrity – The use of ultra-precision machining processes like diamond grinding ensures threads achieve high dimensional accuracy and geometric consistency. The smooth thread surface reduces friction and local stress concentration and can achieve a good seal if required. This combination of precision and quality enables ceramic threaded parts to achieve reliable connections with zero leakage and high repeat positioning accuracy in vacuum systems, fluid pipelines, and precision mechanisms.

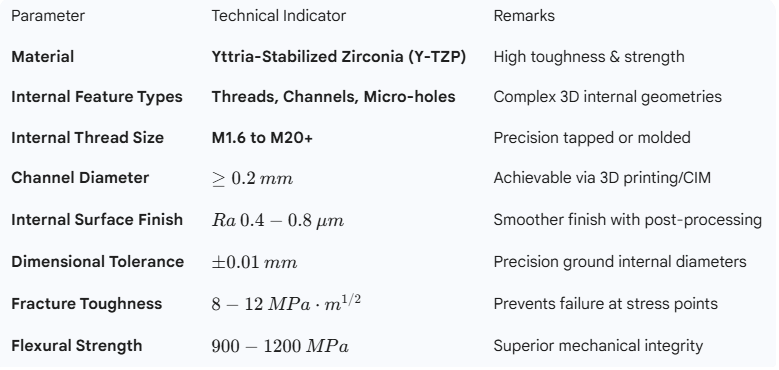

Core Technical Specifications
Our Market Advantages
Functional Integration for High-Reliability Assemblies
Engineered for industries requiring corrosion-resistant, wear-proof threaded connections, these zirconia ceramic parts serve critical roles in equipment where conventional metals underperform. Our custom zirconia ceramic components target engineering applications demanding pure, non-metallic joints with electrical insulation and chemical inertness. Ideal users include manufacturers of analytical instruments, semiconductor equipment, and chemical reactors, where modular ceramic-to-ceramic or ceramic-to-metal connections improve system longevity and stability under extreme conditions. This solution enhances design flexibility and system integrity with consistent thread accuracy.
Precision and Material Integrity in Thread Machining
Manufactured from yttria-stabilized tetragonal zirconia (Y-TZP) or alternatives like silicon carbide, these industrial ceramic materials undergo ultra-precision internal thread machining achieving sub-micron surface finishes (Ra < 0.4 μm). Advanced diamond grinding and ultrasonic-assisted tapping ensure exceptional thread surface quality and dimensional accuracy, minimizing wear and galling risk. Material hardness exceeds HV 1200 and fracture toughness ranges between 8–12 MPa√m, delivering outstanding mechanical resilience. Lead times range from 40 to 120 days, reflecting thread complexity. This precision supports vacuum-grade tight seals and repeatable mechanical fitments critical in high-end industrial setups.
Versatile Applications in High-Performance Industrial Systems
Our industrial ceramic solutions fit applications spanning vacuum analytical equipment, fluid control systems, and biocompatible sensor housings. The threaded zirconia ceramic parts excel in corrosive chemical processing lines, precision valve assemblies, and devices demanding contamination-free, leak-proof connections. Their non-magnetic, biocompatible nature enables integration in medical and semiconductor manufacturing. The product’s capability to maintain integrity in tight-seal environments assures system compliance with stringent quality and safety standards, supporting operational efficiency and long-term reliability in global industries.
Product Advantages
Structural Modularity and Design Adaptability
These zirconia ceramic parts incorporate internal threading adaptable to standardized metric and imperial connections, facilitating straightforward integration into existing industrial systems. The design accommodates ceramic-to-metal interfaces without sacrificing mechanical integrity, allowing modular assembly configurations. Through advanced manufacturing processes, whether with zirconia or alternative industrial ceramic materials, the parts maintain consistent dimensional tolerances critical for interchangeability. The high fracture toughness of yttria-stabilized zirconia further optimizes resistance to mechanical stresses induced during assembly, extending component lifecycle and reducing maintenance interventions.
Optimized Performance and User Reliability
In operational contexts, these components deliver durable threaded connections resistant to wear, corrosion, and galling which enhances maintenance intervals and operational uptime. The precision thread machining promotes leak-tight seals essential for vacuum compatibility and chemical purity. Their inherent chemical stability and biocompatibility reduce contamination risks in sensitive environments, adding value to end-users concerned with compliance and system cleanliness. Additionally, the parts benefit from the non-conductive nature of zirconia ceramic, supporting applications requiring electrical insulation. Overall, these features contribute to improved system reliability and return on investment for industrial users.
Use Scenarios
Vacuum Analytical Equipment Assembly
In precision analytical laboratories, maintaining vacuum integrity is paramount. Our zirconia ceramic parts featuring ultra-precision internal threads provide robust, clean connections that resist chemical attack and mechanical degradation. These ceramic threaded components replace metal fittings prone to corrosion and particle contamination, thus bolstering system purity and extending service cycles. Their dimensional precision ensures high repeatability of assemblies, vital for modular instrumentation. By integrating seamlessly with vacuum seals and ceramic housings, this solution enhances consistency and operational stability in semiconductor inspection or mass spectrometry environments.
Chemical Processing and Corrosive Environment Fittings
Chemical plants demand components capable of enduring aggressive fluids while maintaining leak-tight integrity. Our industrial ceramic materials crafted into internally threaded zirconia parts serve as corrosion-resistant pipe fittings and valve assemblies in such contexts. Their exceptional wear resistance supports long-term exposure to acidic or alkaline compounds, while internal threads enable secure, gall-resistant joints that simplify maintenance. These parts integrate effectively into fluid transport systems, ensuring compliance with stringent chemical compatibility standards and reducing downtime associated with metal corrosion failures typical in harsh industrial conditions.
