Product Name:
Zirconia Ceramic Plunger Rod / Shaft
Product Material:
Yttria-Stabilized Tetragonal Zirconia Ceramic (Y-TZP). For applications requiring ultra-high wear resistance or higher temperature tolerance, Silicon Carbide (SiC) can be provided as an alternative material.
Material Characteristics:
Exceptional fracture toughness (highest among ceramics, K₁c: 8-12 MPa·m¹ᐟ²) and high impact resistance, Ultra-high hardness (HV >1200) and extremely low wear rate, Excellent chemical corrosion resistance (resistant to strong acids, alkalis, organic solvents, and salts), High mechanical strength and flexural strength (>1000 MPa), Low friction coefficient, Good thermal shock resistance, Moderate coefficient of thermal expansion (~10×10⁻⁶/K) compatible with various metals, Material is pure with no risk of metal ion leaching, Good electrical insulation.
Application Fields:
Drive rods and piston rods for high-precision metering pumps and plunger pumps; Wear-resistant reciprocating rods for conveying corrosive, high-purity, or particle-laden media in chemical process pumps; Ultra-clean, corrosion-resistant drive shafts in semiconductor wet process equipment (e.g., cleaning, CMP); High-speed, wear-resistant guide rods or shafts in textile and packaging machinery; Precision, corrosion-resistant push rods or mandrels in analytical instruments and medical devices.
Application Industries:
Fluid Control (Chemical, Pharmaceutical), Semiconductor Manufacturing, Biomedical (Medical Equipment), Advanced Mechanical Equipment, Petrochemical, New Energy (Electrolyte handling).
Processing Difficulties:
Manufacturing slender rods with extremely high length-to-diameter ratios (up to 30:1 or higher) while controlling bending deformation during sintering and machining; Ensuring extremely high straightness (e.g., <2 µm/100mm) and roundness over the entire rod length; Achieving nano-level (Ra < 0.05 µm) surface finish and strict diameter tolerances (often in the µm range) on the rod surface, especially on mating sections; For profiled rods with steps, grooves, or end threads, ensuring coaxiality and positional accuracy between features; Controlling machining residual stress to prevent deformation or fracture during use due to stress relief.
Processing Flow:
Processing and homogenization of high-purity, ultra-fine Y-TZP powder → Isostatic pressing or injection molding to form rod-shaped green bodies → High-temperature atmosphere sintering for densification → Centerless cylindrical grinding for preliminary sizing and straightening → Precision CNC cylindrical grinding to achieve target diameter and shape → Ultra-precision lapping or honing to obtain final dimensions and surface finish → CNC machining of end faces, steps, threads, and other features → Fine polishing and deburring of feature areas → Full dimensional inspection using laser length measurement, roundness testers, and profilometers → Cleaning and packaging
Delivery Period:
Standard diameter and length straight rods/shafts: 35-60 days
Custom rods with extremely high length-to-diameter ratios, complex features, or ultra-high precision requirements: 70-130 days
Zirconia Ceramic Plunger Rods / Shafts are critical linear motion components designed to withstand high-load, high-frequency reciprocating or rotary motion, as well as harsh chemical environments. They play a central role in power transmission and precise positioning within reciprocating pumps, precision machinery, and special equipment. Compared to traditional metal rods, zirconia ceramic rods fundamentally solve the inherent problems of metal materials—prone to wear, corrosion, and deformation under demanding operating conditions—thanks to their very high hardness, superior wear resistance, and exceptional corrosion resistance. Their unique transformation toughening property grants them impact and fracture resistance far exceeding other ceramics, ensuring absolute safety and extended service life under high-speed motion and impact loads. They are the ideal choice for achieving high equipment reliability, low maintenance costs, and long-term precision stability.
Key Features:
Extraordinary Wear Life and Mechanical Reliability – The ultra-high hardness of zirconia ensures minimal wear on the rod surface during long-term, high-speed friction against seals, bearings, or guide bushings. Its wear rate can be 1-2 orders of magnitude lower than that of high-quality alloy steel. Simultaneously, its exceptional fracture toughness can effectively absorb impact energy, preventing brittle fracture caused by improper installation, instantaneous overload, or lateral forces, achieving a perfect balance between hardness and toughness.
Exceptional Corrosion Resistance and Environmental Adaptability – The material exhibits excellent resistance to a wide range of acids, alkalis, solvents, and oxidizing environments, allowing safe operation in highly corrosive media where metal materials would quickly fail. Its chemical stability also means it will not contaminate the media it contacts, making it particularly suitable for industries with high purity requirements like semiconductor, food, and pharmaceuticals.
Superior Dimensional Stability and Motion Precision – The low coefficient of thermal expansion and high rigidity of ceramic materials result in minimal deformation of the rod under temperature variations and load. Combined with ultra-high precision straightness, roundness, and surface finish, this ensures smooth, low-friction linear motion, achieving precise positioning and repeatability, significantly improving the efficiency and accuracy of the entire drive system.

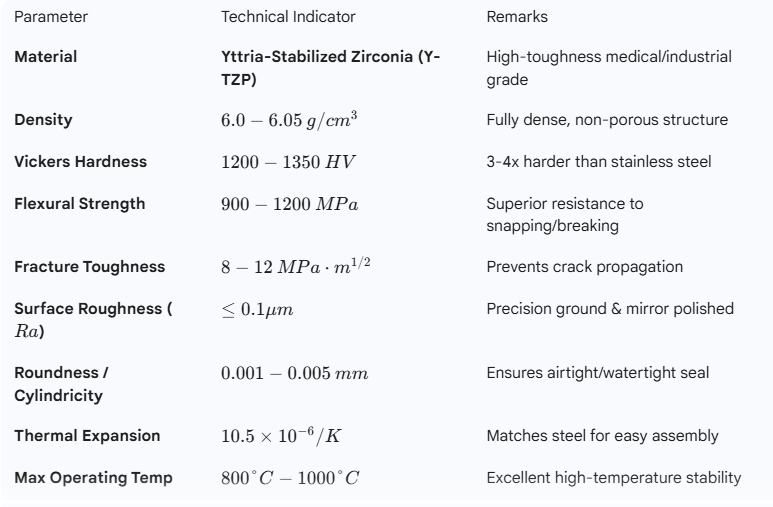

Core Technical Specifications
